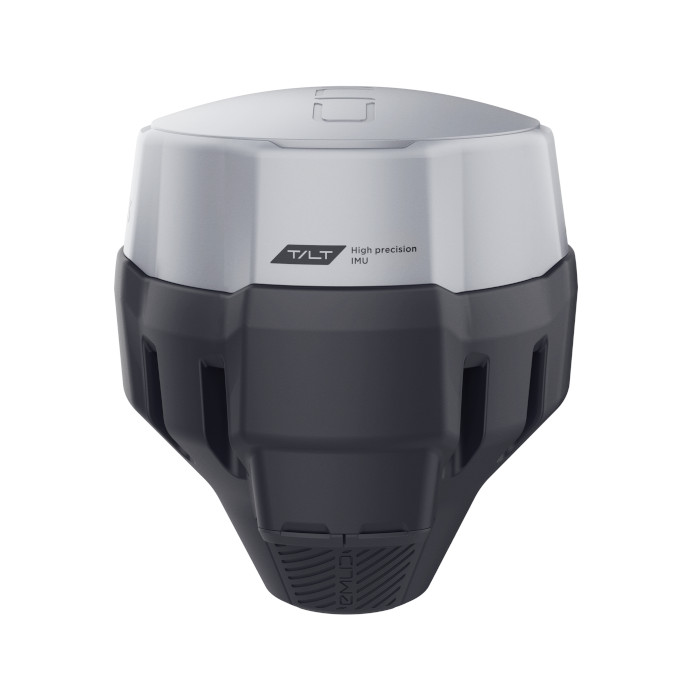

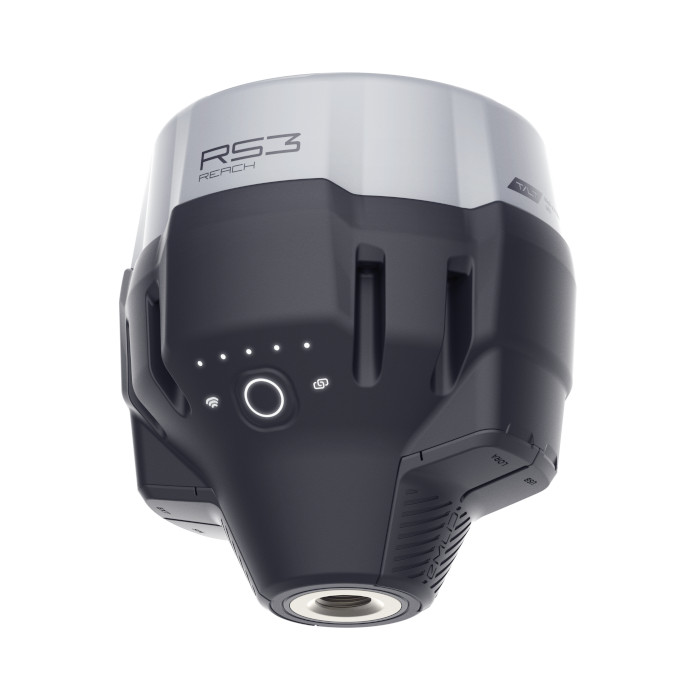

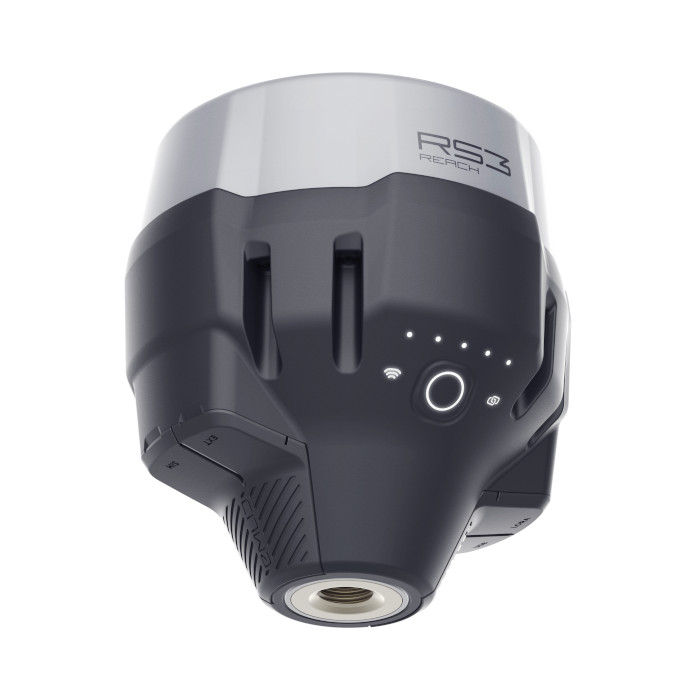

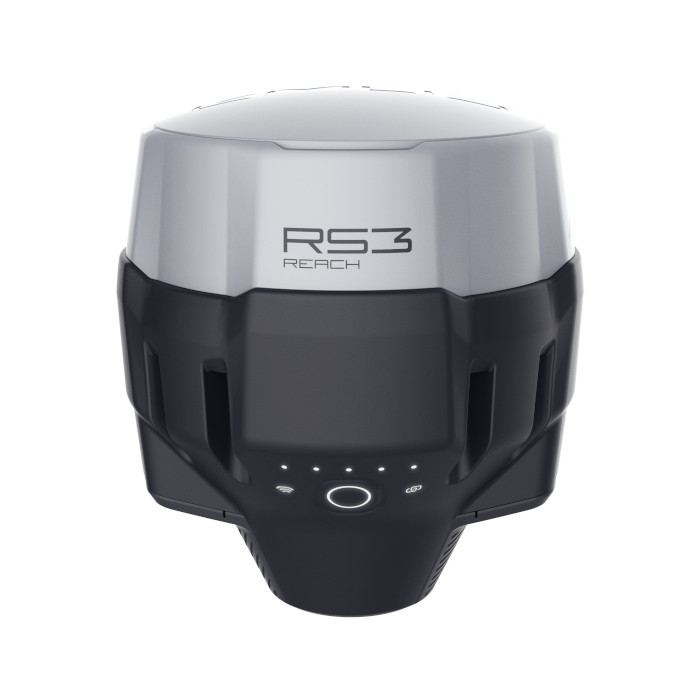

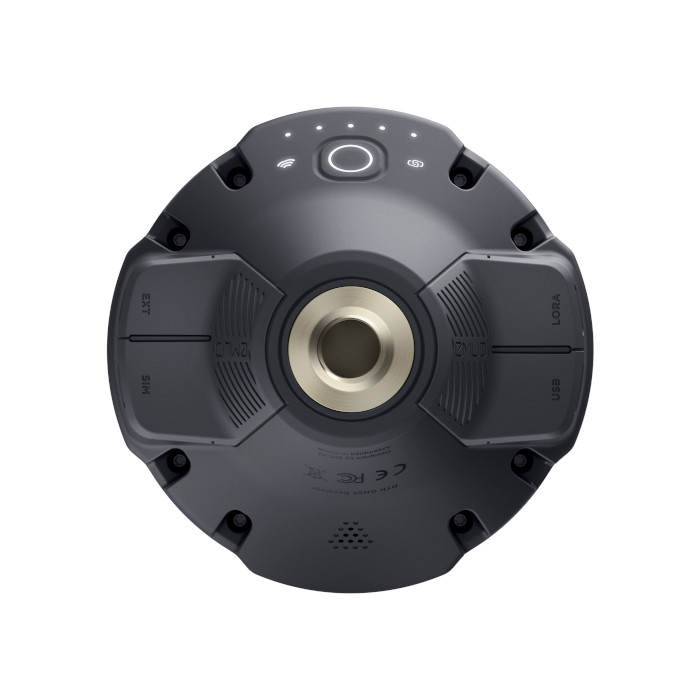

The Emlid Reach RS3 is a multi-band RTK GNSS receiver that features IMU-based tilt compensation, an LTE Modem and dual-band radio for RTK corrections.
It offers centimetre-level accuracy even in hard-to-reach spots, compatibility with RTK base stations transmitting TRIMTALK 450S, has a battery life of up to 22 hours and is engineered to be tough. The Emlid Flow mobile app enables you to control the RS3 receivers with iOS and Android devices.
IMU
6DOF, RTK + 2 mm + 0.3 mm/°
GNSS
GPS/QZSS, GLONASS L1, L2; BeiDou B1, B2; Galileo E1, E5
18 hrs with tilt compensation
Li-Ion battery, USB Type-C charging
LTE and Wi-Fi
To connect the device to the internet
Dual-band radio
868/915 MHz LoRa to receive and transmit corrections
450 MHz UHF to receive corrections

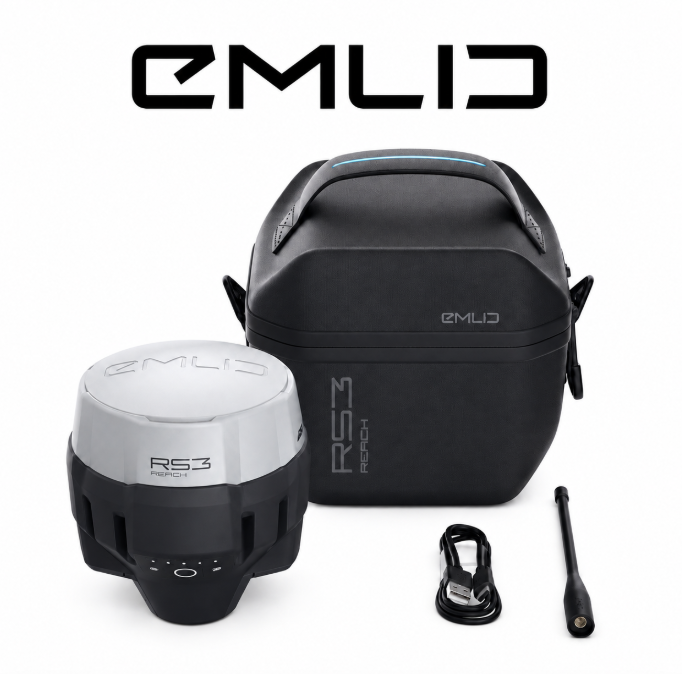

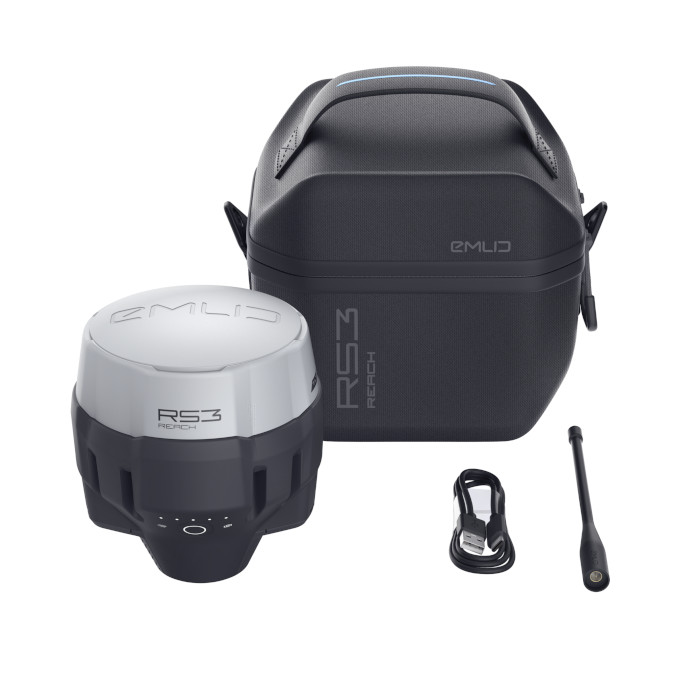

Package Contents
– Reach RS3
– Carrying case with a strap
– LoRa antenna
– USB Type-C cable
EMLID REACH RS3
RS3 RTK GNSS RECEIVER WITH TILT COMPENSATION
The Emlid Reach RS3 is an RTK GNSS receiver with IMU tilt compensation. It works as a base or a rover, takes corrections over NTRIP or the built-in LoRa radio, and holds centimetre accuracy up to 60 degrees of tilt.
Key features
- RTK GNSS receiver, works as a base or a rover
- IMU tilt compensation up to 60 degrees, 20 mm accuracy while tilted
- Corrections over NTRIP or the dual-band LoRa 868/915 MHz radio
- UHF 450 MHz rover option for bases transmitting TRIMTALK 450S
- IP67, 950 g, up to 22 hours on one charge
- Emlid Flow app for setup, logging and stakeout
Specifications
| Brand | Emlid |
|---|---|
| Part number | Reach RS3 |
| Type | RTK GNSS receiver |
| Tilt compensation | Up to 60 degrees |
| Radio | LoRa 868/915 MHz, dual band |
| Size | 126 × 126 × 142 mm |
| Weight | 950 g |
| Rating | IP67 |
| Battery life | Up to 22 hours |
| Operating temperature | -20 to +65 °C |
Compatibility and fitment
Works with any receiver that supports RTCM3 for corrections, and with the Emlid Flow app on iOS and Android. The UHF 450 MHz rover option needs a 410-470 MHz antenna, sold separately.
In the box
- 1 × Emlid Reach RS3 receiver
